DDZY217 (S22-1) Single Phase Anti-tamper Electronic Meter

DDZY217 (S22-1) Single Phase Anti-tamper Electronic Meter is a low cost active energy meter based on SOC solution. It adopts LCD to display the energy. It has anti-tamper, alarm functions.

General Introduction
Main functions
Technical Parameters
Product Standards
Main Features

DDZY217 (S22-1) Single Phase Anti-tamper Electronic Meter is a low cost active energy meter based on SOC solution. It adopts LCD to display the energy. It has anti-tamper, alarm functions.

● LCD Display: With 6 integers and 2 decimals.

● Active energy metering.

● RS485 communication interface (Optional).

● Hardware faults alarm: The meter will alarm when memory faults or metering unit faults happen.

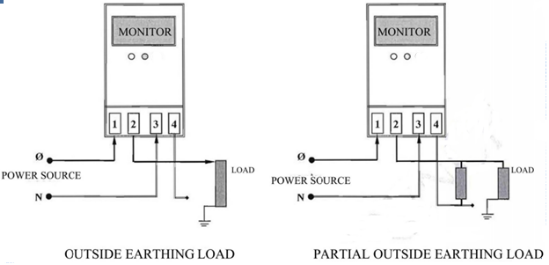

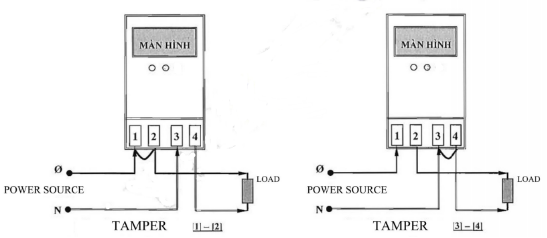

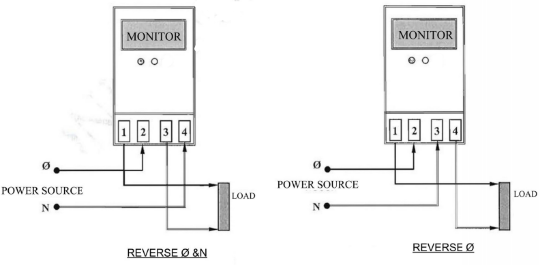

● Anti-tamper: The meter will alarm when the following tamper events happen:

Items	Contents
Technical standards	IEC 62052-11; IEC 62053-21
Accuracy	Active: Class 1
Nos. of wires	2
Reference voltage	120V/220V/230V/240V
Current	10(40)A 5(60)A
Reference frequency	50/60 Hz
Power consumption	＜1.5W, 6VA
Operation voltage range	0.8Un～ 1.2Un
Limited operation voltage range	0.7Un～ 1.3Un
Operation temperature range	-25℃～ +60℃
Limited operation temperature range	-40℃～ +70℃
Life time	15 years
Size	218mm(L)×109mm(W)×55.5mm(H)
Net weight	About 0.5kg

IEC 62052-11；IEC 62053-21
